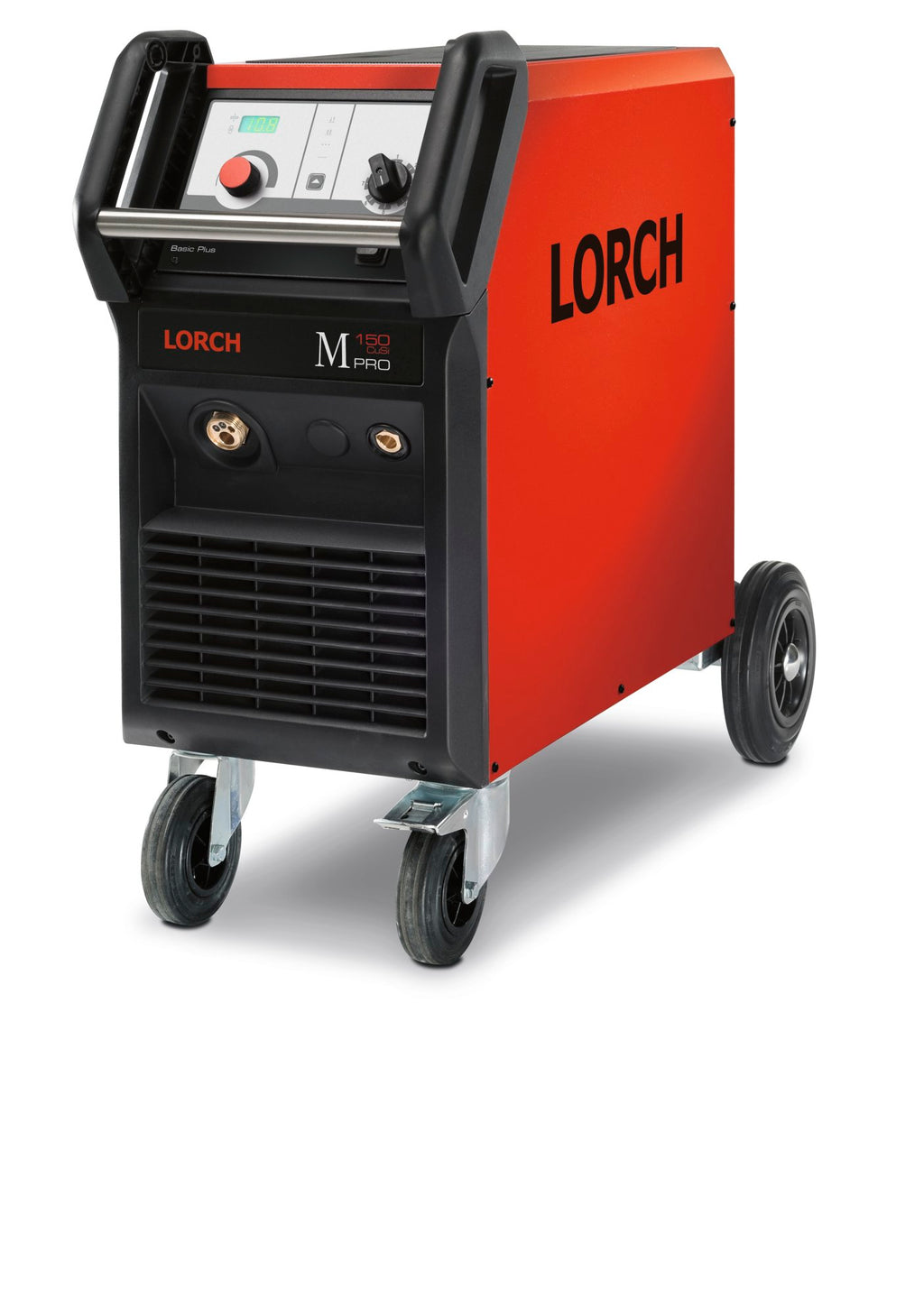

M-Pro 150 CuSi ControlPro Set 15/3

LorchSKU: 218.0150.0

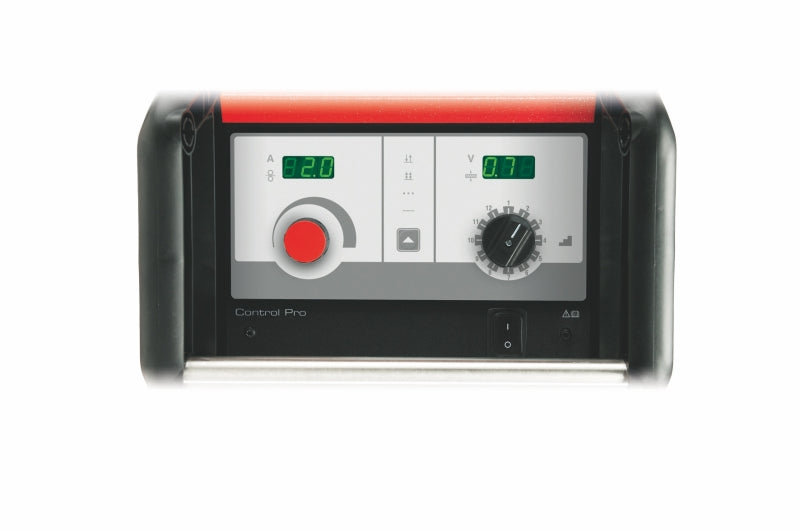

Display: BasicPlus
Utförande: Endast maskin
Pris:
Reapris23 283 kr

Frakt beräknas i kassan

Beskrivning

MIG-MAG welding
Welding range 3~ 400 V: [A] 15 - 150
Voltage range: [V] 14.8 - 21.5
Weldable Wires Steel: [Ø in mm] 0.6 - 1
Weldable wires Stainless steel: [Ø in mm] 0.8 - 0.8
Weldable wires aluminum: [Ø in mm] 0.8 - 1
Weldable wires CuSi: [Ø in mm] 0.8 - 1
Voltage setting
Voltage setting: 7 passi
MIG-MAG duty cycle
Duty cycle 100% (40°c): [A] 100
Duty cycle 60% (40°c): [A] 120
Duty cycle at max. current (40°c): [%] 40
Process-independent data
Open circuit voltage: [V] 13 - 32
Mains 400 V
Mains voltage 3~ (50/60 Hz): [V] 400
Mains fuse 3~ (50/60 Hz): [A] 16
Positive mains tolerance 3~ (50/60 Hz): [%] 15
Negative mains tolerance 3~ (50/60 Hz): [%] 15
Mains plug
Mains plug: CEE 16
Standards and approvals
Protection class: IP23S
Insulation class: F
Norm/Standard: EN 60974-01
Designation/Certification: CE, S
Cooling type
Cooling type: Gas-cooled
Dimensions length x width x height
Dimensions (LxWxH) [mm] 880 × 400 × 755
Weights
Weight: [kg] 66
