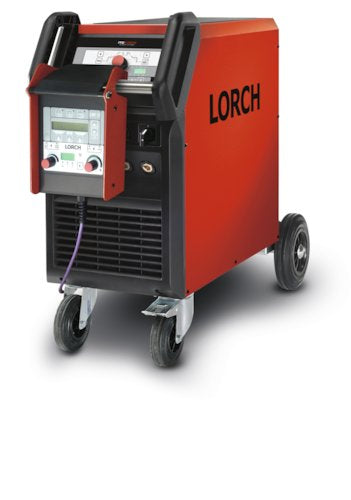

TF-Pro 300 AC/DC ControlPro water-cooled

LorchSKU: 251.4306.0

Kylning: Luft
Pris:
Reapris115 759 kr

Frakt beräknas i kassan

Beskrivning

TIG welding
Welding range 3~ 400 V: [A] 5 - 300
Voltage range: [V] 10.2 - 20
TIG Duty cycle AC 400 V
Duty cycle AC 100% (40°c): [A] 200
Duty cycle AC 60% (40°c): [A] 230
Duty cycle AC at max. current (40°c): [%] 30
TIG Duty cycle DC 400 V
Duty cycle DC 100% (40°c): [A] 230
Duty cycle DC 60% (40°c): [A] 270
Duty cycle DC at max. current (40°c): [%] 45
Electrode welding
Welding range 400 V: [A] 10 - 200
Voltage range: [V] 20.4 - 28
Weldable electrodes: [Ø in mm] 1.5 - 5
Electrode duty cycle
Duty cycle 100% (40°c): [A] 170
Duty cycle 60%: [A] 200
Duty cycle at max. current (40°c): [%] 60
Process-independent data
Open circuit voltage: [V] 77 - 87
Mains 400 V
Mains voltage 3~ (50/60 Hz): [V] 400
Mains fuse 3~ (50/60 Hz): [A] 16
Positive mains tolerance 3~ (50/60 Hz): [%] 15
Negative mains tolerance 3~ (50/60 Hz): [%] 15
Mains plug
Mains plug: CEE 16
Standards and approvals
Protection class: IP23S
Insulation class: F
Norm/Standard: EN 60974-01
Designation/Certification: CE, S
Cooling type
Cooling type: Gas-cooled , Water-cooled
Cooling
Standard cooling capacity (l/min): [kW] 1.14
Tank capacity: [l] 3.4
Dimensions length x width x height
Dimensions (LxWxH) [mm] 880 × 400 × 755
Weights
Weight: [kg] 67
