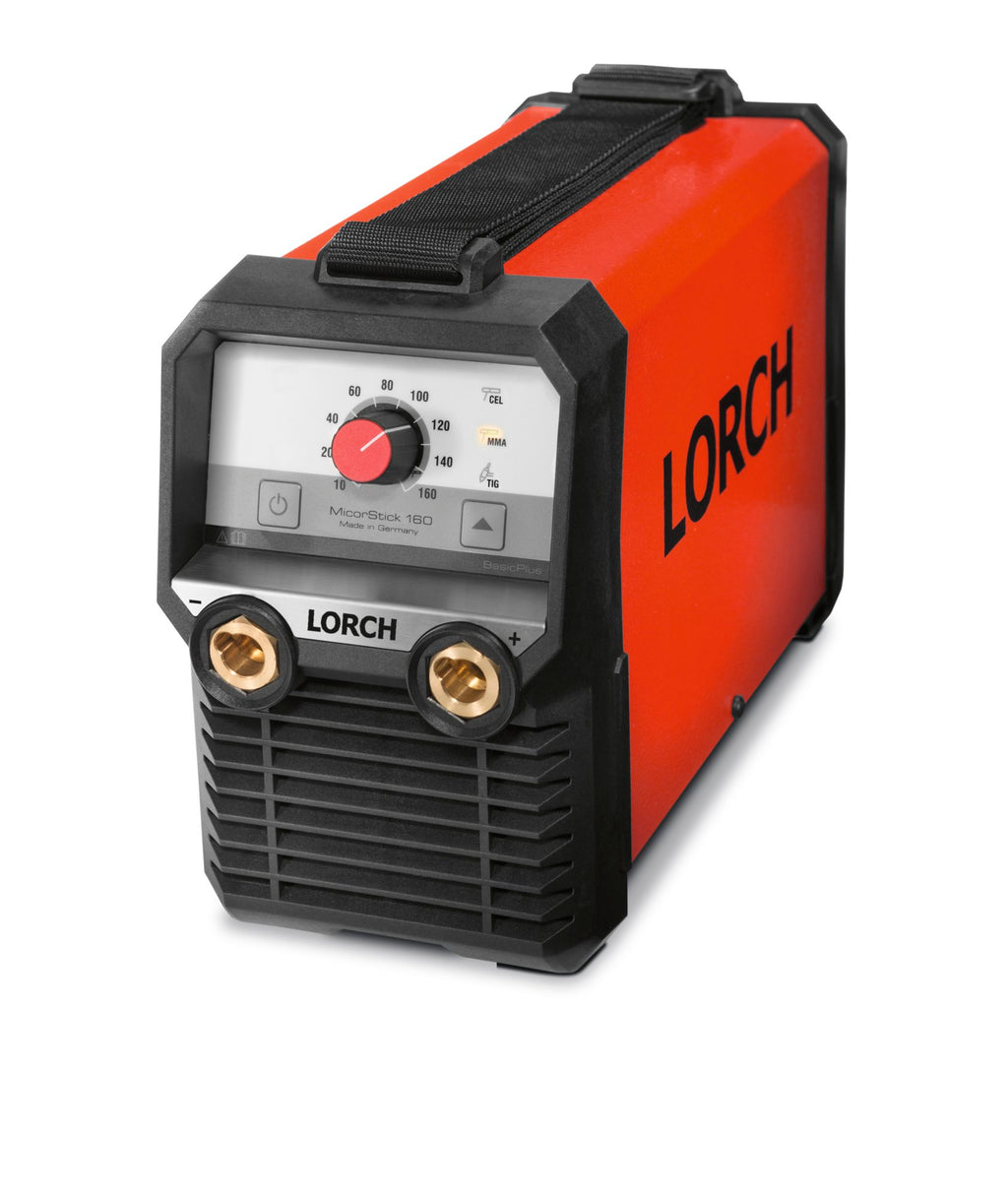

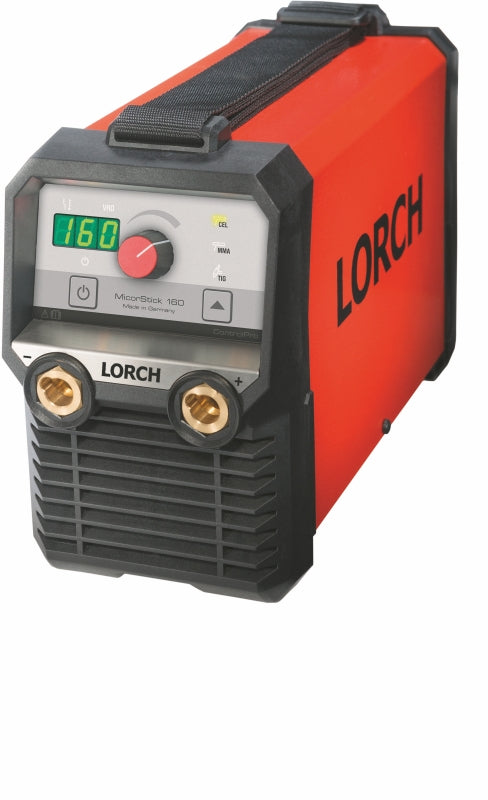

MicorStick 160 ControlPro VRD (Accu-ready)

LorchSKU: 111.1600.0

Utförande: BasicPlus
Pris:
Reapris10 125 kr

Moms ingår Frakt beräknas i kassan

Beskrivning

Electrode welding
Welding range 230 V: [A] 10 - 160
Voltage range: [V] 20.4 - 26
Weldable electrodes: [Ø in mm] 1.5 - 4
Electrode duty cycle
Duty cycle 100% (40°c): [A] 110
Duty cycle 60%: [A] 120
Duty cycle at max. current (40°c): [%] 30
TIG welding
Welding range 1~ 230 V: [A] 15 - 160
Voltage range: [V] 10.6 - 16.4
TIG Duty cycle DC 230 V
Duty cycle DC 100% (40°c): [A] 110
Duty cycle DC 60% (40°c): [A] 120
Duty cycle DC at max. current (40°c): [%] 30
Process-independent data
Open circuit voltage: [V] 67 - 106
Open circuit voltage VRD: [V] 12 - 18
Mains 230 V
Mains voltage 1~ (50/60 Hz): [V] 230
Mains fuse 1~ (50/60 Hz): [A] 16
Positive mains tolerance 1~ (50/60 Hz): [%] 15
Negative mains tolerance 1~ (50/60 Hz): [%] 15
Mains plug
Mains plug: Schuko
Standards and approvals
Protection class: IP23S
Insulation class: F
Norm/Standard: EN 60974-01
Designation/Certification: CE, S
Cooling type
Cooling type: Gas-cooled
Dimensions length x width x height
Dimensions (LxWxH) [mm] 360 × 130 × 215
Weights
Weight: [kg] 4.9
